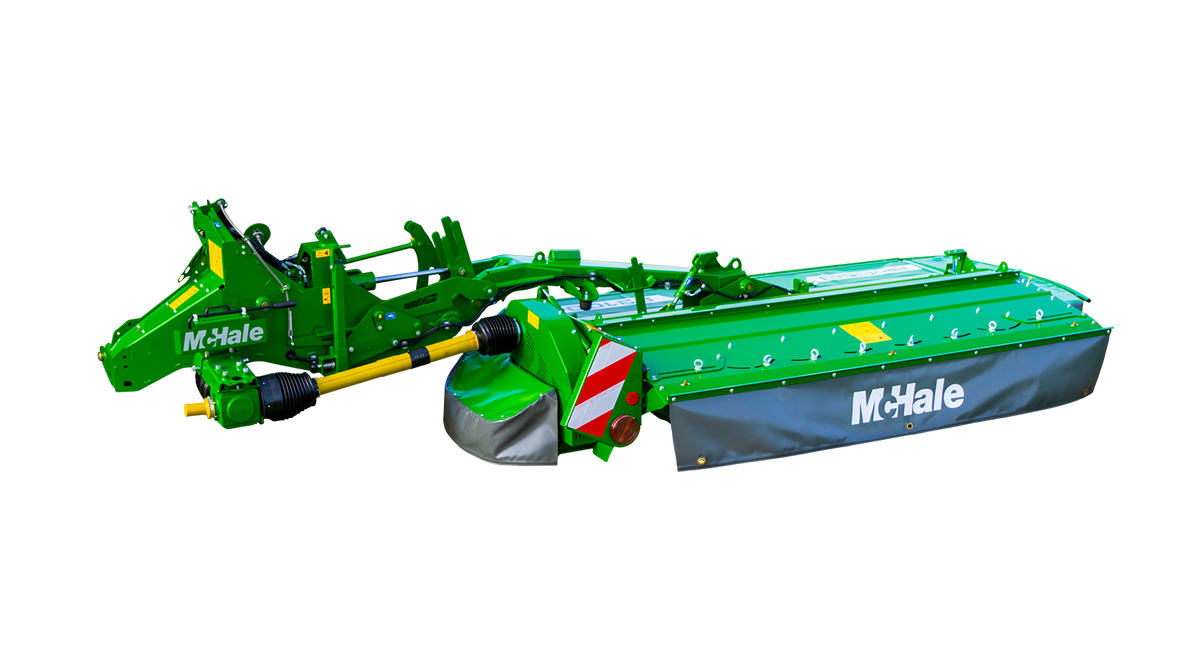

McHale Pro Glide R3100-II Rear Mower
McHale Pro Glide R3100-II Rear Mower
Engineered for maximum uptime, the newly designed McHale Pro Glide R3100-II rear mower features responsive hydraulic ground pressure control which delivers exceptional flotation for a flawless, clean cut using the new McHale X-Edge Cutterbar.
Equipped with a mechanical break-back protection and high-performance steel tine conditioner, it delivers peak output in the toughest crop conditions. Combining ease of operation and low maintenance with a rugged build quality, the Pro Glide R3100-II is engineered to guarantee non-stop field efficiency.
Contact us for pricing and more details.
Standard Features
Standard Features
Mechanical Break Back Protection
Cutterbar Ground Pressure Control
Central Pivot Floatation
X-Edge Cutterbar
17º Transverse Movement (Left / Right Movement)
Pull Type Mowing System
CoreCut Protection Quick-Fit Blades
Steel Tine Conditioner
Adjustable Conditioner Intensity
116.5° Transport Position
Swath Boards & Deflection Plates
Technical Specifications
Dimensions and Weight
Transport Width: 1.7m (67′)
Transport Length: 2.2m (87″)
Transport Height: 3.6m (142″)
Weight: 1,250 kgs (2,756 lbs)
Mower Specifications
Cutting Width: 3.1 m (122”)
Swath Width: 1.3m – 2.3m (51″-91″)
Number of Cutting Discs: 7
Total Number of Blades: 14 (2 Blades per Disc)
Cutting Height: 25mm – 75mm
Cutting Disc Speed: 3,200 rpm
Cutting Blade: Quick Change
Conditioner
Conditioner Type: Steel Tine Conditioner
Conditioner Speed: 925 rpm
Tractor Attachment
Minimum Power Requirement: 80 kW / 108HP
Linkage Attachment: CAT II or CAT III (Rear) 3-Point Linkage
PTO Speed: 1,000 rpm
Lighting: LED Lighting: 12 V/7-pin socket
Hydraulic Systems: Double Acting Hydraulic Supply with Float (Minimum) & Single Acting Hydraulic Supply (Optional)
Minimum Pressure: 180 bar (2,3610 psi)
Minimum Hydraulic Flow Rate: 20 l/min (4.54 gal/min) @ 180 bar (2,610 psi)
Capacity: 3.5 ha/h (8.5 acres/hour)
