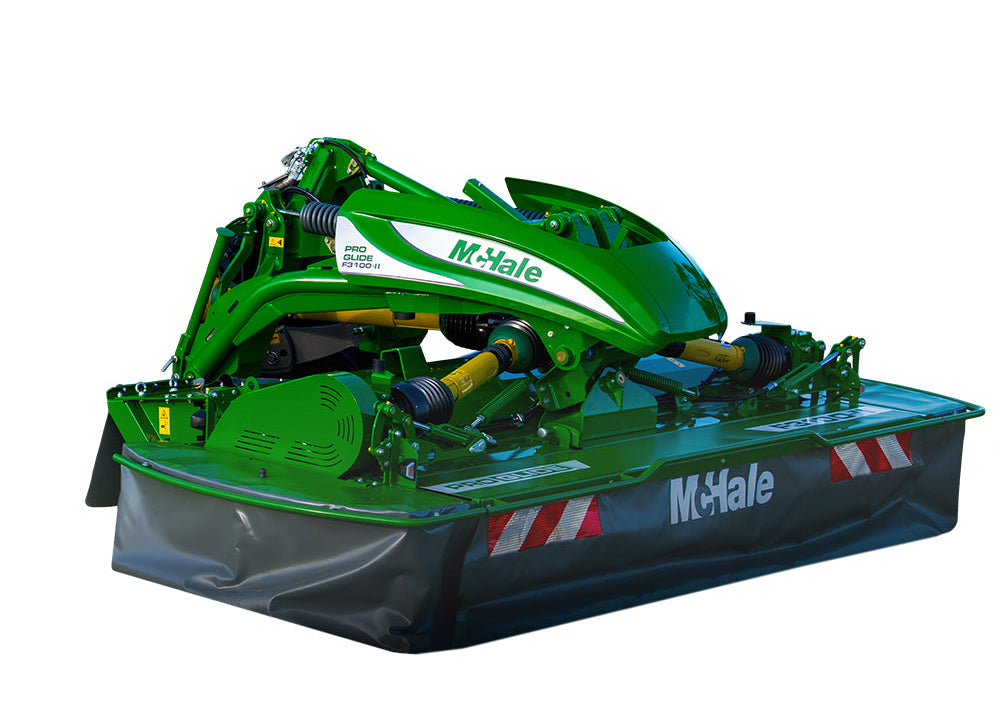

McHale Pro Glide F3100-II Front Mower
McHale Pro Glide F3100-II Front Mower
The McHale Pro Glide F3100-II Front Mower sets a new standard in high-output mowing, combining precision engineering and heavy-duty build quality with exceptional flotation for an immaculately clean cut and high-performance conditioning of crop.
Built to withstand the most demanding conditions, the F3100-II delivers rugged reliability without sacrificing agility. Every component is engineered for longevity, providing contractors and large-scale farmers with a dependable, low-maintenance machine that thrives in all types of crops.
Contact us for pricing and more details.
Standard Features
Standard Features
Tubular Frame with Integrated Suspension Design
Mechanical Springs Provide Excellent Ground Following Ability
Automatic Bed Angle Adjustment
Patented Constant Ground Pressure
17º Transverse Movement (Left / Right Movement)
500mm Adaptive Range (Up / Down Movement)
X-Edge Cutterbar
Quick-Fit Blades
CoreCut Protection
Steel Tine Conditioner
Excellent Headland Height Clearance of Over 600mm
Pull Type Mowing
Technical Specifications
Dimensions and Weight
Transport Width: 2.96m (116′)
Transport Length: 1.98m (78″)
Transport Height: 1.45m (57″)
Weight: 1,250 kgs (2,756 lbs)
Mower Specifications
Cutting Width: 3.1 m (122”)
Swath Width: 1.3m – 2.3m (51″-91″)
Number of Cutting Discs: 7
Total Number of Blades: 4 (2 Blades per Disc)
Cutting Height: 25mm – 75mm
Cutting Disc Speed: 3,200 rpm
Cutting Blade: Quick Change
Conditioner
Conditioner Type: Steel Tine Conditioner
Conditioner Speed: 925 rpm
Tractor Attachment
Minimum Power Requirement: 80 kW / 108HP
Linkage Attachment: CAT II or CAT III (Front) 3-Point Linkage
PTO Speed: 1,000 rpm
Lighting: LED Lighting: 12 V/7-pin socket
Hydraulic Systems: Single Acting Hydraulic Supply with Float
Minimum Pressure: 180 bar (2,3610 psi)
Minimum Hydraulic Flow Rate: 20 l/min (4.54 gal/min) @ 180 bar (2,610 psi)
Capacity: 3.5 ha/h (8.5 acres/hour)
